| 零件名稱 | 材質 | ||
| 閥體/閥蓋 | CF8 | CF8M | A216 / WCB |
| 球塞 | CF8 | CF8M | CF8 |
| 軸心 | SUS 304/CF8 | SUS 316/CF8M | SUS 304/CF8 |
| 壓板 | CF8 | CF8 | CF8 |
| 閥座 | PTFE/Virgin TFE/Fiberglass Filled TFE | ||
| 軸心填料 | PTFE/Virgin TFE/Fiberglass Filled TFE | ||
| 墊片 | PTFE/Virgin TFE/Fiberglass Filled TFE | ||
| 螺絲 | SUS 304 | SCM 3 | |

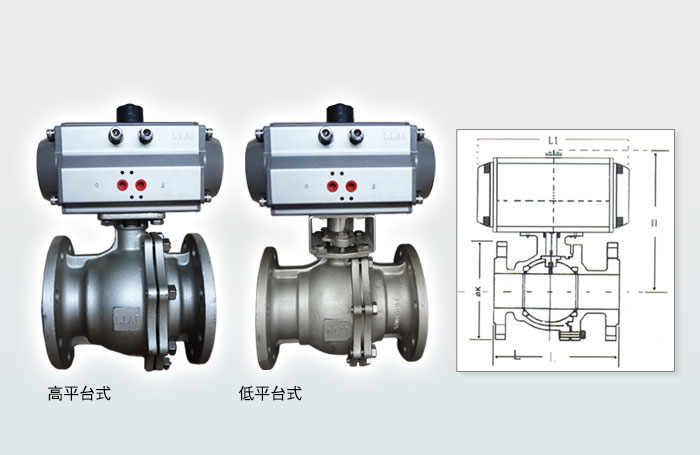

| 球閥尺寸 | Φ A | L | Φ F | G | T | Φ K | Φ H(PCD) | Φ M | N | H | L1 |
| 15A | 15 | 108 | 35 | 1.6 | 11.2 | 89 | 60.5 | 16 | 4 | 150 | 145 |
| 20A | 20 | 117 | 43 | 1.6 | 11.2 | 98 | 70 | 16 | 4 | 155 | 145 |
| 25A | 25 | 127 | 51 | 1.6 | 11.2 | 108 | 79.5 | 16 | 4 | 160 | 145 |
| 32A | 32 | 140 | 64 | 1.6 | 12.7 | 117 | 89 | 16 | 4 | 175 | 145 |
| 40A | 40 | 165 | 73 | 1.6 | 14.2 | 127 | 98.5 | 16 | 4 | 195 | 158.5 |
| 50A | 50 | 178 | 92 | 1.6 | 15.9 | 152 | 120.5 | 19 | 4 | 200 | 158.5 |
| 65A | 65 | 190 | 105 | 1.6 | 17.5 | 178 | 139.5 | 19 | 4 | 235 | 210.5 |
| 80A | 80 | 203 | 127 | 1.6 | 19.1 | 190 | 152.5 | 19 | 4 | 260 | 247.5 |
| 100A | 100 | 229 | 157 | 1.6 | 23.9 | 229 | 190.5 | 19 | 8 | 290 | 268.5 |
| 125A | 125 | 355.6 | 186 | 1.6 | 23.8 | 254 | 216 | 22 | 8 | 360 | 345 |
| 150A | 150 | 393.7 | 216 | 1.6 | 25.4 | 279 | 241.5 | 22 | 8 | 390 | 408.5 |
| 200A | 200 | 457.2 | 270 | 1.6 | 28.6 | 343 | 298.4 | 22 | 8 | ||
| 250A | 250 | 533.4 | 324 | 1.6 | 30.2 | 406 | 361.9 | 25 | 12 | ||
| 300A | 300 | 609.6 | 381 | 1.6 | 31.8 | 483 | 432 | 25 | 12 | ||
| 350A | 350 | 686 | 413 | 1.6 | 35 | 533 | 476.5 | 29 | 12 |
